Full Dry GYXY FTTH Uni-tube aerial 12 fiber multi mode fiber
optical cable
Description
The fibers, 250μ M, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound.
Over the tube, water-blocking material is applied to keep the cable
watertight. Two parallel steel wires are placed at the two sides.
The cable is
completed with apolyethylene (PE) sheath.
Feature
• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of
fiber
• Two parallel steel wires ensure tensile strength
• PE sheath protects cable from ultraviolet radiation
• Small diameter, light weight and friendly installation
• Long delivery length

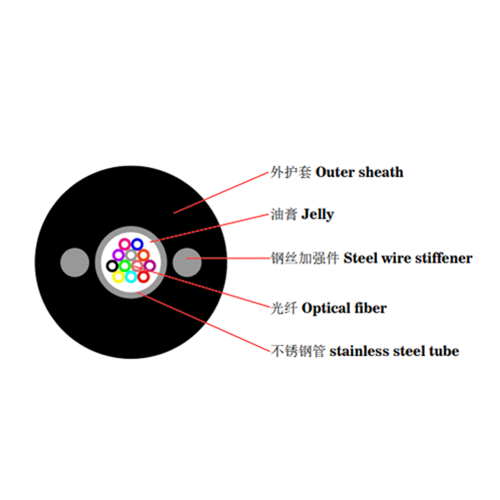

Cable Cross-section Diagram
Technique Parameters
| G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the
table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode
fibers.
3. Specially designed Cable structure is available on request.
Application
1. LAN Backbones
2. Networks with mixed indoor and outdoor cabling
3. Flooded duct
4. Premises distribution system
Temperature Rage:
• Transport/storage temperature: -20℃ to +70℃
Certificate
Our services
Our Certificate
Package and delivery
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by
exress
(DHL,UPS,FEDE or TNT..) as your request .
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including :ZXOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any
of which is optional.
